Spectrometer

UV-VIS-NIR SpectrometerUV-VIS-NIR fiber-input spectrometer

FT-IR spectrometer

UV-VIS-NIR fiber-input spectrometer

  • 350-2600nm or 200-2600nm 파장영역
  • 빠른 측정
  • 고분해능 < 5nm

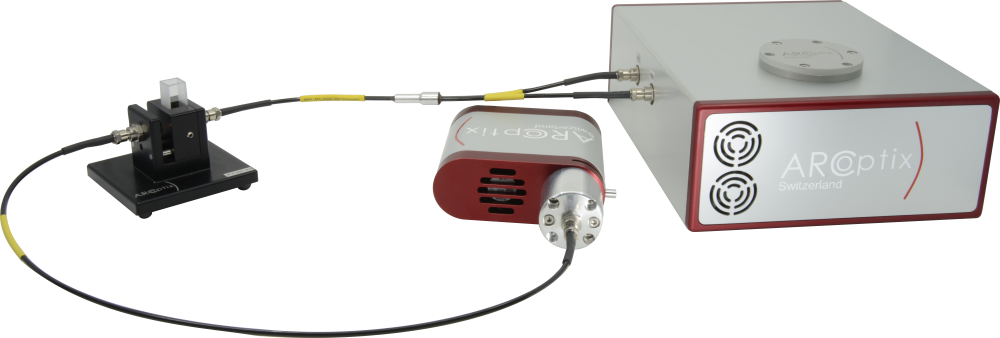

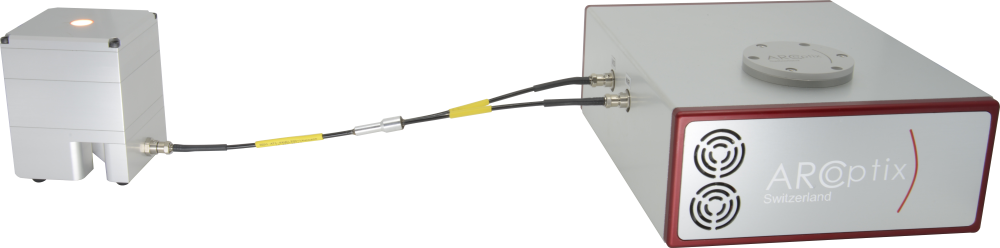

  • 투과, 반사, 광원 측정
  • 매우 쉬운 작동방법
제품문의 자료실 동영상 카다로그
BEST Good
제품특징
  • 제품특징 이미지
    Detector
    Peltier cooled MCT CCD Detector
  • 제품특징 이미지
    Wavelength range
    350-2600 or 200-2600nm (2-12 μm)
  • 제품특징 이미지
    Resolution
    <5nm
    고분해능
  • 제품특징 이미지
    초소형
    초소형 Spectrometer
  • 제품특징 이미지
    Embedded DSP
    옵션
  • 제품특징 이미지
    Portable
    휴대하여 측정가능
  • 제품특징 이미지
    Interface
    USB2.0 interface로 빠른 데이터 처리
  • 제품특징 이미지
    Best
    가격대비 우수한 성능
제품사양
Models VIS-NIR-FIB
Spectral range 350nm - 2500nm
VIS spectrometer Dispersive spectrometer with a silicon array detector (3648 pixels) 16-bit ADC Spectral range: 350-1000nm
NIR spectrometer

Fourier-Transform NIR spectrometer with extended range InGaAs photodiode,

2TE cooled, 24-bit ADC Spectral range: 900-2500nm (uncooled version)
Fiber inputs 2x SMA-905 (one for VIS, one for NIR)
Minimum measurement time <2 seconds
Resolution <1.5nm

SNR

(Full dynamic range- 5 sec measurement,

Halogen lamp directly attached)

>1’000:1 (VIS) @ 600nm

>10'000:1 (NIR) @ 2000nm

Notice that (due to poor sensitivity of Si and InGaAs detectors) the SNR is

up to 10x lower in the overlap region from 900 to 1100 nm.
Software interface Windows 10
Operating voltage (power) 12V / 10W (line power adaptor 100-240V included)
Communication Interface USB 2.0
Product Dimensions 220mm x 180mm x 80mm
Product Weight 2.5Kg
Operating Temperature 5°C – 35°C
동영상
적용분야
Grating & FT-NIR spectrometers comparison

This video displays the major differences between a grating based spectrometer and our FT-NIR.

A live comparison is performed between a commercially available grating spectrometer

and the ARCoptix FTNIR-L1-025-2TE.
MIR DR measurement - ARCSPHERE-MIR

This video showcases a compact and poweful platform for performing diffuse reflectance measurements

in the mid-infrared. The ARCoptix ARCSPHERE-MIR, directly coupled to the FTMIR.-L1-120-4TE,

is used as convenient sampling interface that delivers highly reproducible data.

This setup delivers high SNR spectra without compromising the spectral range of the detector (2-12μm).

MIR DR measurement - FTIR OEM010

with common-path accessory

This video showcases a compact and poweful platform for performing diffuse reflectance measurements

in the mid-infrared. The ARCoptix FTIR-OEM010-120-4TE is combined to our common-path accessory

to deliver high quality DR spectra from a small spot size (~1x2mm).

This setup delivers high SNR spectra without compromising the spectral range of the detector (2-12μm).
VIS-NIR diffuse reflectance measurement

This video illustrates how to use the ARCoptix VIS-NIR-DR spectrometer for diffuse reflectance

measurements in the VIS-NIR region of the electromagnetic spectrum. The software allows to evaluate

the total solar reflectance (TSR) value of any sample quickly and conveniently.
NIR diffuse reflectance measurement

This video illustrates how to install and use the ARCoptix FT-NIR spectrometer coupled to the ARCoptix

ARCSPHERE-NIR for diffuse reflectance measurements in the NIR.

MIR transmission measurement

This video illustrates how to use the ARCoptix FT-MIR spectrometer for transmission measurements.

Typical absorbance spectra of various polymers, such as polystyrene, are obtained using the

ARCLIGHT-MIR and the FTMIR-L1-120-4TE.
