제품소개
해외 우수한 분석, 측정, 계측기기 제조회사의 독점 대리점 !

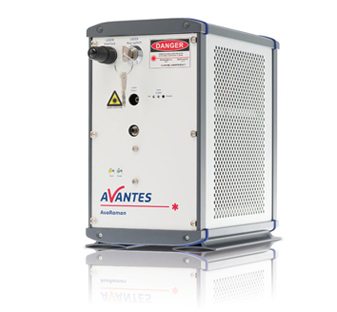

Raman System
AvaRaman
BEST Good
제품특징
-
- Detector
- 2048pixel
SONY CCD Detector
-
- Wavelength range
- 100 - 2700 cm-1
넓은 파장영역대역 (파장영역 선택가능)
-
- Thermo Electric Cooling
- Regulated : △-20℃
-
- No moving parts
- 시스템 안정성 극대화
-
- Bluetooth
- Bluetooth
communication(옵션)
-
- Interface
- USB 2.0 interface로 빠른 데이터 처리
-
- Interface
- RS-232 interface 적용
-
- Application
- 다양한 악세사리를 연결하여 광범위한 Application에 응용
-
- Best
- 가격 대비 우수한 성능
제품사양
| Spectrometer Platform | AvaRaman- 532 TEC Cooled |
AvaRaman- 532 HERO-EVO Cooled |
AvaRaman- 785 TEC Cooled |
|
|---|---|---|---|---|
Signal to noise Ratio |
200:1 for Benzene | 800:1 for Benzene | 300:1 for Benzene | |
| Resolution | ± 6 cm-1 | ± 10 cm-1 | ± 6 cm-1 | |
| Spectrometer | AvaSpec-ULS2048L-TEC with grating NC (535- 752 nm), slit-25, DCL-UV/VIS TE-cooled |
AvaSpec-HERO with HSC1200-0.75 (535- 660nm), slit-25-FCPC, TE-cooled, Standard: replaceable slit |
AvaSpec-ULS2048L-TEC with grating SI (785-1080 nm), slit-25, DCL-UV/VIS- 200 TE-cooled | |
| Raman Shift | 100-5400 cm-1 | 100-3650 cm-1 | 100-3500 cm-1 | |
| Laser output | 532 nm, 50 mW | 532 nm, 50 mW | 785 nm, 500 mW, Class 3b | |
| Laser Wavelength | 532 nm | 532 nm | 785 nm | |
| Laser Bandwidth | < 0.1 nm | < 0.1 nm | < 0.2 nm | |
| Dimensions housing | 240 (L) x 140 (W) x 250 (H) mm | |||
