UV/VIS/NIRArcLight NIR&MIR

제품이미지

Light Source

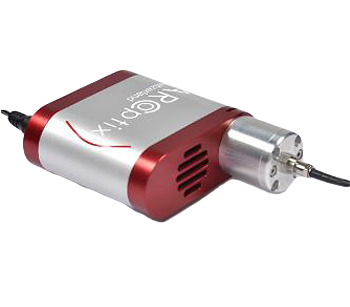

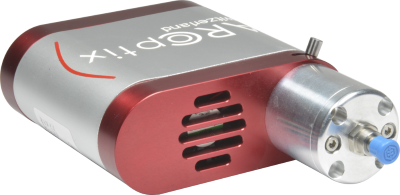

ArcLight NIR&MIR

소형, Stabilized QTH or SiC globar 광원
400~4000 nm or 1000~25000 nm 넓은 파장영역
전자적으로 안정화 됨
감쇠기 사용

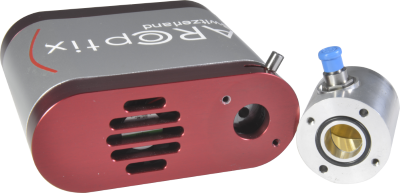

탈착 가능한 fiber coupler

제품문의 자료실 동영상 카다로그

BEST Good

제품특징

Light Source

Stabilized QTH or SiC globar 광원
Wavelength range

400~4000 nm or 1000~25000 nm
넓은 파장영역대역
Attenuator (Manual)

감쇠기 내장으로 광량 조절
Bulb replacement

벌브 교체 쉬움
Application

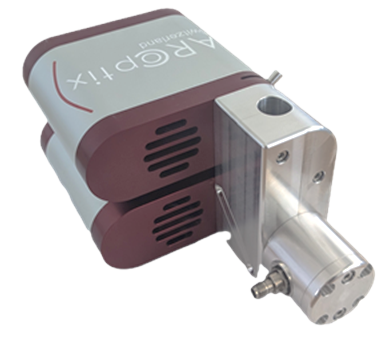

다양한 악세사리를 연결하여 광범위한 Application에 응용
Best

가격 대비 우수한 성능

제품사양

제품사양
Model	ARCLIGHT-NIR	ARCLIGHT-MIR
Spectral range	400 - 4,000 nm	1 - 25 μm
Spectral range	25,000 - 2,500 cm^-1	10,000 - 400 cm^-1

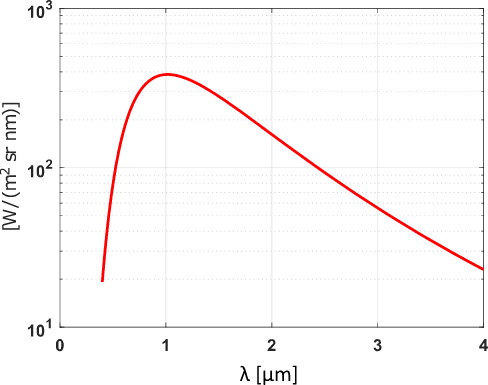

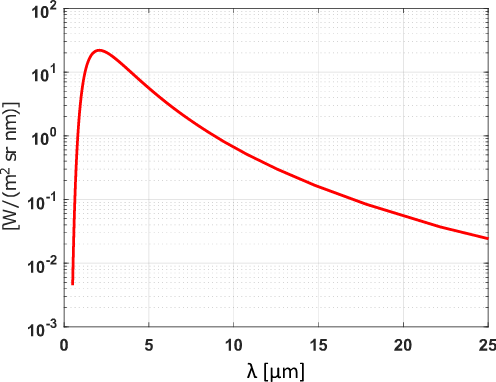

Temperature	~2,850 K	~1,550 K
Rated lifetime	4,000 h	10,000 h
Lamp power	20 W
Lamp type	QTH (halogen)	SiC globar
Removable fiber coupler	SMA-905 , NA = 0.25 , CaF2 lens	SMA-905 , NA = 0.3 , Off-axis parabolic mirror
Output beam diameter	12.7mm
Operational temperature range	5 - 40 °C
Attenuator	Manual iris diaphragm
Cooling	Forced air
Power requirement	12V(100-240V AC to 12V DC converter included)
Dimensions	92mm x 92mm x 43mm (without fiber coupler) 140mm x 92mm x 43mm (with fiber coupler)
Weight	390 g

동영상

적용분야
	Grating & FT-NIR spectrometers comparison This video displays the major differences between a grating based spectrometer and our FT-NIR. A live comparison is performed between a commercially available grating spectrometer and the ARCoptix FTNIR-L1-025-2TE.
	MIR DR measurement - ARCSPHERE-MIR This video showcases a compact and poweful platform for performing diffuse reflectance measurements in the mid-infrared. The ARCoptix ARCSPHERE-MIR, directly coupled to the FTMIR.-L1-120-4TE, is used as convenient sampling interface that delivers highly reproducible data. This setup delivers high SNR spectra without compromising the spectral range of the detector (2-12μm).
	MIR DR measurement - FTIR OEM010 with common-path accessory This video showcases a compact and poweful platform for performing diffuse reflectance measurements in the mid-infrared. The ARCoptix FTIR-OEM010-120-4TE is combined to our common-path accessory to deliver high quality DR spectra from a small spot size (~1x2mm). This setup delivers high SNR spectra without compromising the spectral range of the detector (2-12μm).
	VIS-NIR diffuse reflectance measurement This video illustrates how to use the ARCoptix VIS-NIR-DR spectrometer for diffuse reflectance measurements in the VIS-NIR region of the electromagnetic spectrum. The software allows to evaluate the total solar reflectance (TSR) value of any sample quickly and conveniently.
	NIR diffuse reflectance measurement This video illustrates how to install and use the ARCoptix FT-NIR spectrometer coupled to the ARCoptix ARCSPHERE-NIR for diffuse reflectance measurements in the NIR.
	MIR transmission measurement This video illustrates how to use the ARCoptix FT-MIR spectrometer for transmission measurements. Typical absorbance spectra of various polymers, such as polystyrene, are obtained using the ARCLIGHT-MIR and the FTMIR-L1-120-4TE.
