제품소개
해외 우수한 분석, 측정, 계측기기 제조회사의 독점 대리점 !

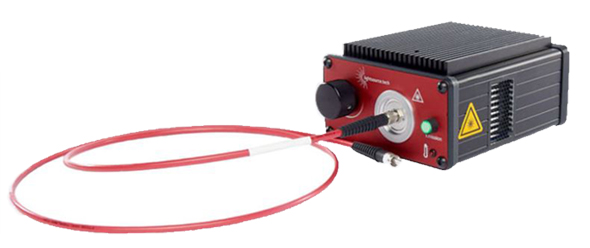

Light Source
UV/VIS/NIRLS-WL1
BEST Good
제품특징
-
- Light Source
- Stabilized Halogen광원
-
- Wavelength range
- 450 - 700 nm 넓은 파장영역대역
-
- TTL셔터 (Auto Dark)
- 램프 스위치내장으로 선택하여 on/off 가능(옵션)
-
- Bulb replacement
- 벌브 교체 쉬움
-
- Application
- 다양한 악세사리를 연결하여 광범위한 Application에 응용
-
- Best
- 가격 대비 우수한 성능
제품사양
| Light source Platform | LS-WL1 | ||
|---|---|---|---|
| Optical output | SMA fiber adapter | ||
| Wavelength range | 450 – 700 nm | ||
| Interface | RS232 (COM port) via USB (type Mini-B) | ||
| Trigger input | TTL, to 200 kHz, SMA connector | ||
| Outputs | Signal/current monitor or sync interface to additional light sources, SMA connector. Input/output options for functions tailored to customer requirements | ||
| Power supply | 12 V DC, 2.5 A, power consumption approx. 20 W (@100% power) | ||
| Lifetime | > 10,000 hours | ||
| Dimensions and weight | 125 x 110 x 60 mm3, 450 g | ||
| Light output | Adjustable 1-100%, 440 mW from 600 µm fiber (NA 0.5) | ||
| Thermal management | Dual high-performance fans, integrated temperature sensor (readable), automatic power down at a programmable temperature limit (standard configuration: 10 – 30°) |
||

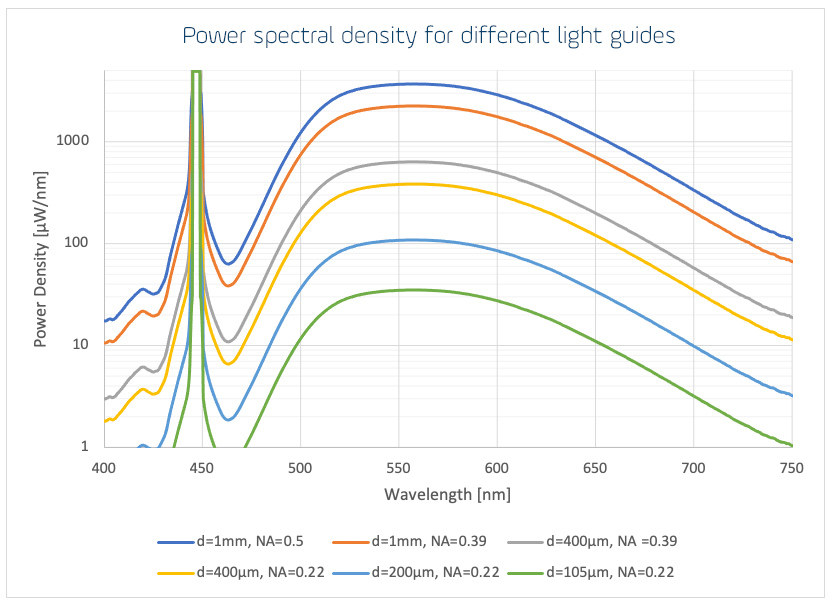

| Spectrum | |
|---|---|
 |
