Light Source

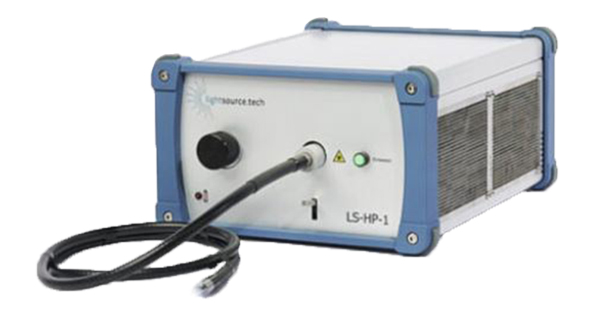

UV/VIS/NIRLS-HP1
BEST Good
제품특징
-
- Light Source
- Stabilized Halogen광원
-
- Wavelength range
- 넓은 파장영역대역
-
- TTL셔터 (Auto Dark)
- 램프 스위치내장으로 선택하여 on/off 가능(옵션)
-
- Bulb replacement
- 벌브 교체 쉬움
-
- Application
- 다양한 악세사리를 연결하여 광범위한 Application에 응용
-
- Best
- 가격 대비 우수한 성능
제품사양
| Light source Platform | LS-HP1 | ||
|---|---|---|---|
| Optical output | Version for 3mm and 5mm liquid light guide available | ||
| 2 modes | Cold white and daylight white | ||
| Operation | RS232 (COM-Port) via USB (type B) | ||
| Trigger input | TTL-level trigger or digital modulation via SMA connection | ||
| Outputs | Selectable output signals via SMA connection; signal reference (TTL), current monitor or input signal looped through |
||
| Power supply | External power supply 24V DC, 9.0A (included), connection: Kycon KPJX-4S, power consumption approx. 150W max. at 100% (depending on the selected LED) |
||
| Lifetime | > 40,000 hours | ||
| Dimensions and weight | 254mm (L) x 200mm (W) x 120mm (H) without user controls and connections, 2350g |
||
| Light output | Up to 4.3W from 5mm LLG | ||

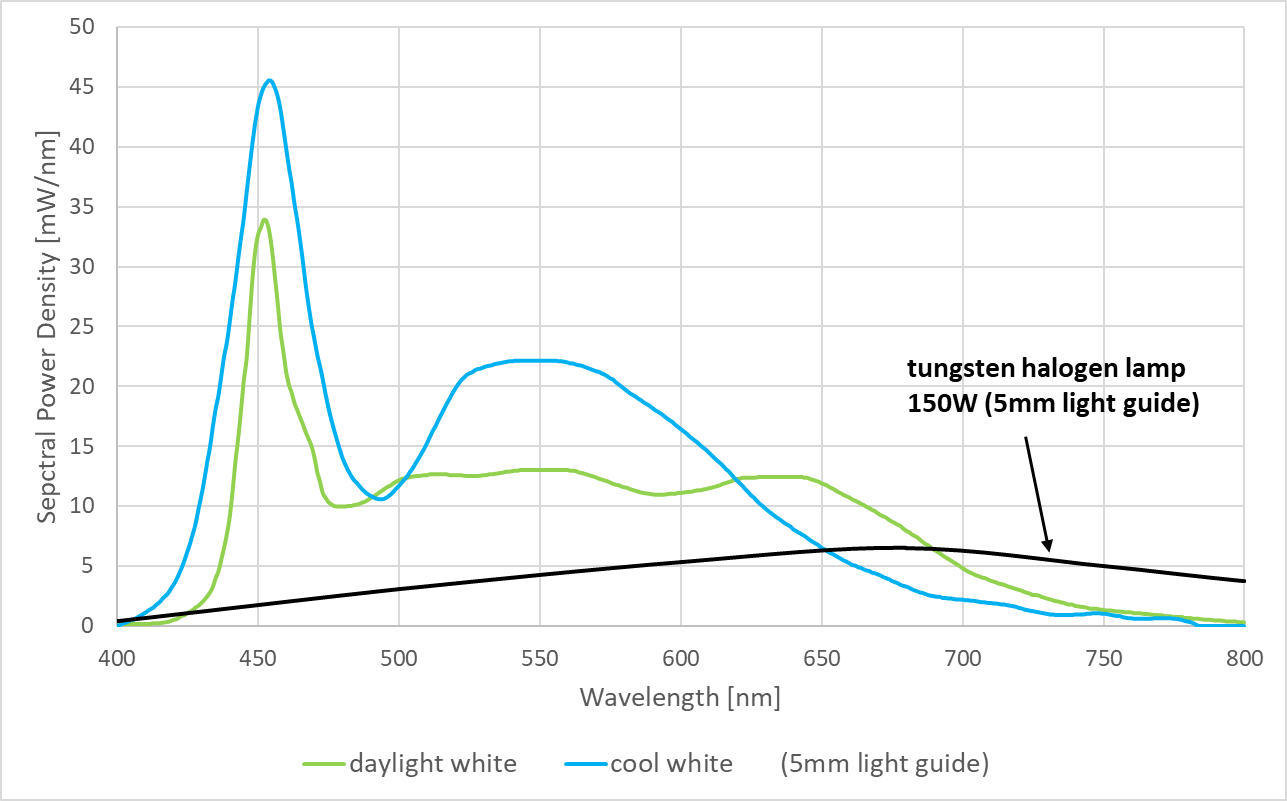

| Spectrum | |
|---|---|
 |
