제품소개
해외 우수한 분석, 측정, 계측기기 제조회사의 독점 대리점 !
Light Source
UV/VIS/NIRMonochromator-H: Tunable light source 340 – 2000nm
BEST Good
제품특징
-
- Light Source
- Stabilized Halogen광원
-
- Wavelength range
- 340 - 2000 nm 넓은 파장영역대역
-
- TTL셔터 (Auto Dark)
- 램프 스위치내장으로 선택하여 on/off 가능(옵션)
-
- Bulb replacement
- 벌브 교체 쉬움
-
- Application
- 다양한 악세사리를 연결하여 광범위한 Application에 응용
-
- Best
- 가격 대비 우수한 성능
제품사양
| Light source Platform | Monochromator-H: Tunable light source 340 – 2000nm | ||
|---|---|---|---|
| Optical output | SMA connectors for multimode fibers (Ø 200 – 1000 µm) | ||
| Focal length | 101.6 mm (4″) | ||
| Aperture | f/2.7 (for fiber with NA=0.22) | ||
| Wavelength range | 340 nm – 2.0 µm | ||
| Bandwidth | 3 – 52 nm FWHM* | ||
| Input and output slit | Selectable slit widths: open, 1000µm, 600µm, 400µm, 300µm, 200µm | ||
| Gratings | 50 x 50 mm2 (various gratings available) | ||
| Order filters | up to 5 pieces, 1/2 inch, Standard set included (3 filters for UV-VIS-NIR) | ||
| Reproducibility | typ. 0.1 nm* | ||
| Scanning speed | 100 – 300 nm/s* | ||
| Software | Software with GUI included | ||
| Interface | USB/RS-232, LabVIEWTM, DLL | ||
| Dimensions | 291 x 270 x 124 mm3, 4 kg | ||

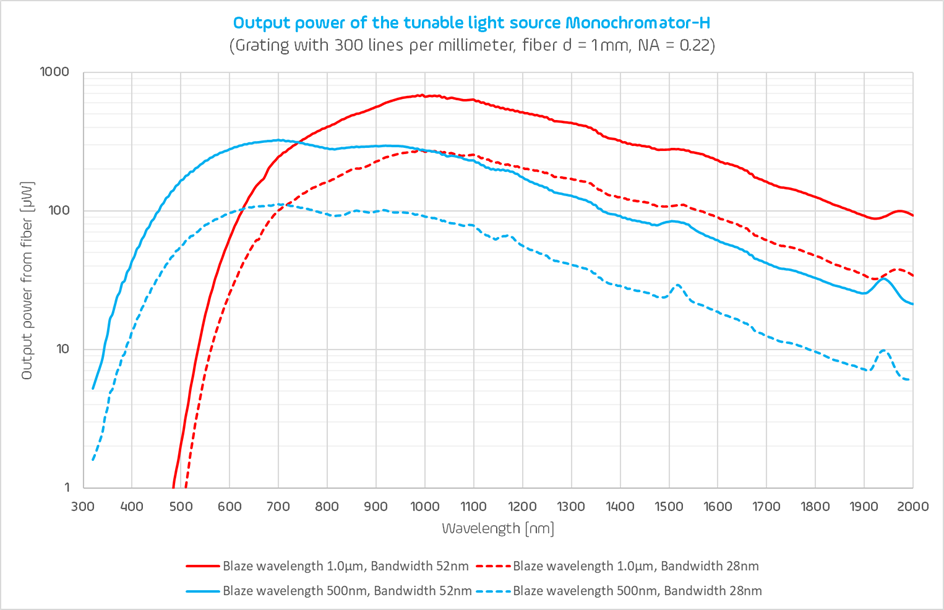

| Power spectrum of the Monochromator-H | |
|---|---|
 |
