Light Source

LED Light SourceLS-MC1

제품이미지

Light Source

LS-MC1

  • 20개 이상의 단일 파장을 위한 LED 광원
  • 자외선(UV)부터 근적외선(NIR)까지의 파장 범위
  • '그린 효율성(Green Efficiency)'을 통한 자원 절약
BEST Good
제품특징
  • 제품특징 이미지
    Light Source
    소형, Low cost
    LED 광원
  • 제품특징 이미지
    Wavelength range
    30 to 200 mW light output
  • 제품특징 이미지
    Fluorescence
    형광분석에 용이
  • 제품특징 이미지
    Pulsed or Continuous
    모드 가능
  • 제품특징 이미지
    Application
    다양한 악세사리를 연결하여 광범위한 Application에 응용
  • 제품특징 이미지
    Best
    가격 대비 우수한 성능
제품사양
제품사양
Light source Platform LS-MC1
Optical output SMA optical fiber output (other available on request)
Wavelength range

20+ wavelengths available, see table

(measurement protocol available, wavelength selection available on request)*

Operation RS232 (COM-Port) via USB (type Mini-B)
Trigger input TTL, to 100 kHz, SMA connector
Outputs

Signal/current monitor or sync interface to additional light sources, SMA connector

Input/output options for functions tailored to customer requirements

Power supply 12 V DC, 2.5 A, power consumption approx. 20 W (@100% performance)
Lifetime > 10,000 hours
Dimensions and weight 125 x 110 x 60 mm³, 450 g
Light output 30 – 200 mW (from 1 mm fiber), see table
*The nominal wavelength can typically deviate by several nm from the peak wavelength. A more precise wavelength selection is usually possible. Please contact us in such case.

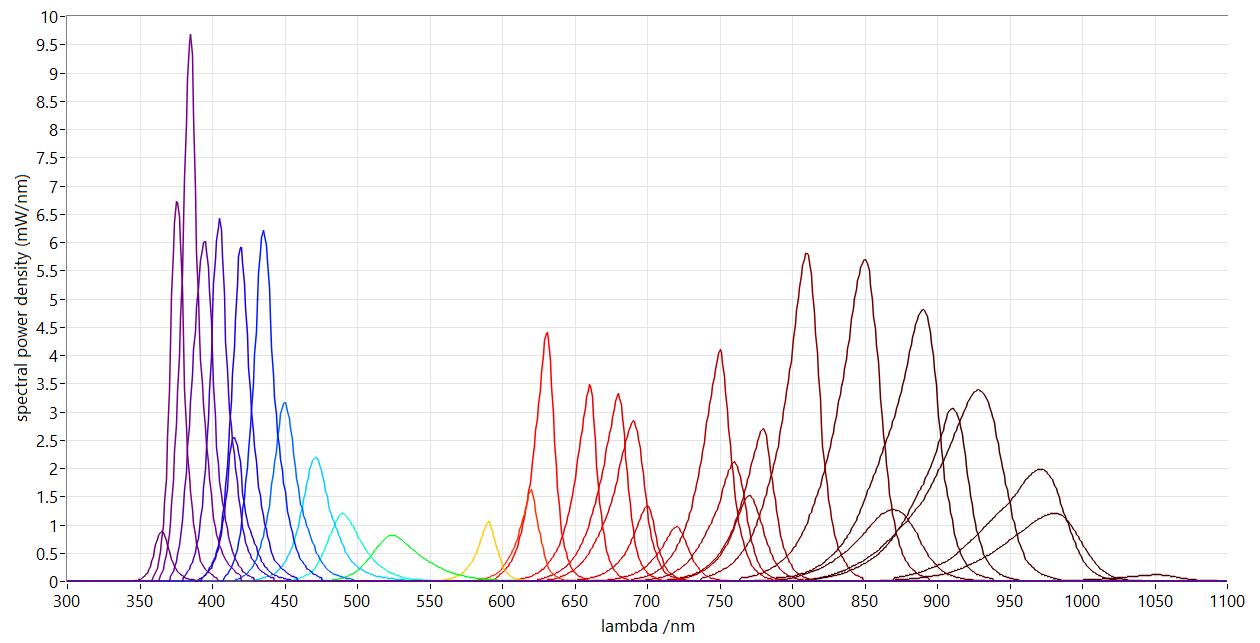

LED 파장에 따른 비교
재품이미지
