Light Source

LED Light SourceLS-HP1 series

제품이미지

Light Source

LS-HP1 series

  • 리퀴드 라이트 가이드용 고출력 광원
  • 365nm에서 940nm까지의 11가지 단일 파장
  • 긴 수명, 40,000시간
BEST Good
제품특징
  • 제품특징 이미지
    Light Source
    소형, Low cost
    LED 광원
  • 제품특징 이미지
    Wavelength range
    365 to 940 nm
  • 제품특징 이미지
    Fluorescence
    형광분석에 용이
  • 제품특징 이미지
    Pulsed or Continuous
    모드 가능
  • 제품특징 이미지
    Application
    다양한 악세사리를 연결하여 광범위한 Application에 응용
  • 제품특징 이미지
    Best
    가격 대비 우수한 성능
제품사양
제품사양
Light source Platform LS-HP1 series
Optical output Version for 3mm and 5mm liquid light guide available
Available wavelengths 365nm, 380nm, 405nm, 415nm, 450nm, 530nm, 613nm, 735nm, 780nm, 850nm, 940nm
Operation RS232 (COM-Port) via USB (type B)
Trigger input TTL-level trigger or digital modulation via SMA connection
Outputs

Selectable output signals via SMA connection; signal reference (TTL),

current monitor or input signal looped through

Power supply

External power supply 24V DC, 9.0A (included), connection: Kycon KPJX-4S,

power consumption approx. 150W max. at 100% (depending on the selected LED)

Lifetime > 40,000 hours
Dimensions and weight

254mm (L) x 200mm (W) x 120mm (H)

without user controls and connections, 2350g

Light output Up to 7,2W from 5mm LLG

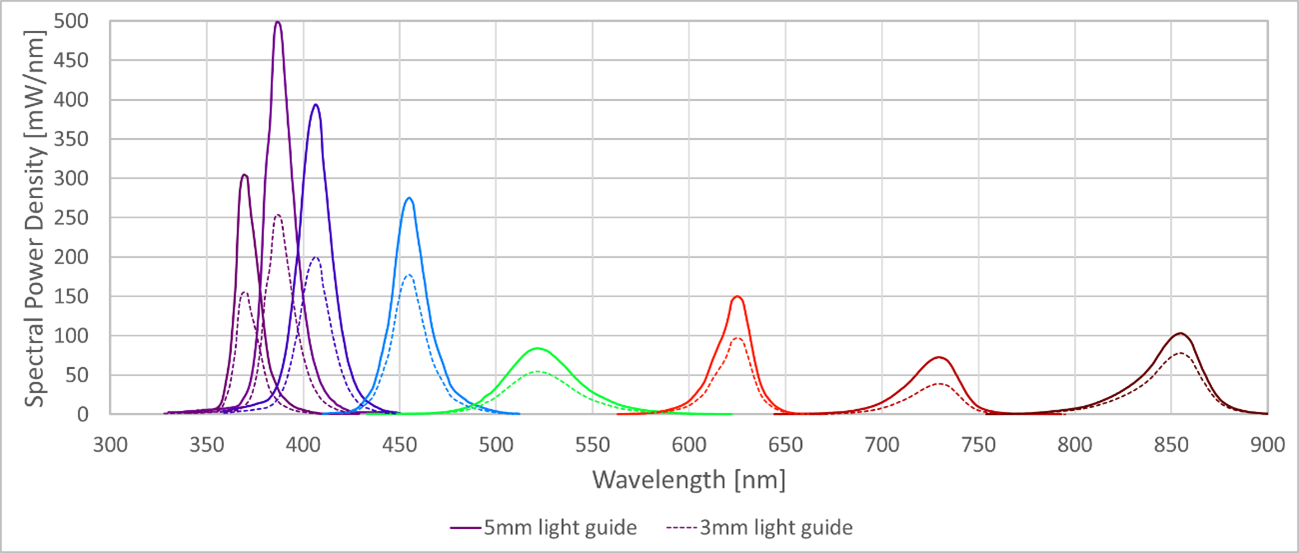

LED 파장에 따른 비교
재품이미지
