일사량/열유속/열전도도계
Heat Flux SensorFHF05SC
BEST Good
제품사양
| FHF05SC | |
|---|---|
| Measurand | heat flux, temperature |
| Outer dimensions foil with guard | (50x50, 85x85)x103 m |
| Sensitivity(nominal) | |
| FHF05SC-50x50 | 13x10-6 V/(W/m2) |
| FHF05SC-85x85 | 50x10-6 V/(W/m2) |
| Temperature sensor | type T thermocouple, IEC 60584-1:2013 class 2* |
| Thermal spreaders | included |
| Rated bending radius | ≥ 15x10-3m |
| Rated load on cable | ≤ 1.6kg |
| Sensor thermal resistance | 24x10-4K/(W/m2) |
| Sensor thickness | 0.7x10-3m |
| Uncertainty of calibration | ± 5 % (k = 2) |
| Rated temperature range - continuous use | -40 to +120 °C** |
| Rated temperature range - short intervals | -160 to +150 °C** |
| IP protection class | IP67*** |
| Standard wire length | 2m |
| Heater resistance per model | |
| FHF05SC-50X50 | 120 Ω (nominal) |
| FHF05SC-85X85 | 40 Ω (nominal) |
| Heater power supply | 12 VDC |

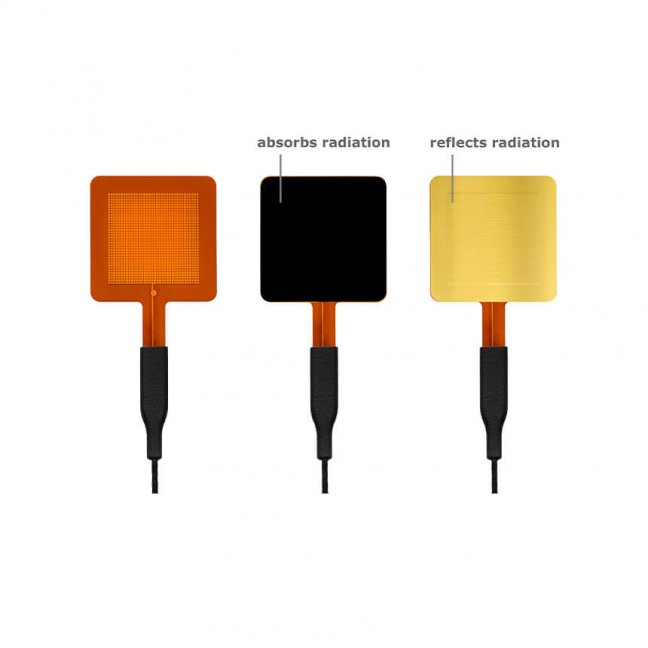

| Options | 5 or 10 m cable length, separate cable, BLK black sticker, GLD gold sticker |
| * | temperature measurement uncertainty: 5 % of value in C. For details, refer to user manual. |
| ** | rated operating conditions: 120 ˚C continuous use, 150 ˚C short intervals; use to -80 ˚C is possible. |
| *** | sensor is not suitable for continuous exposure to water. |

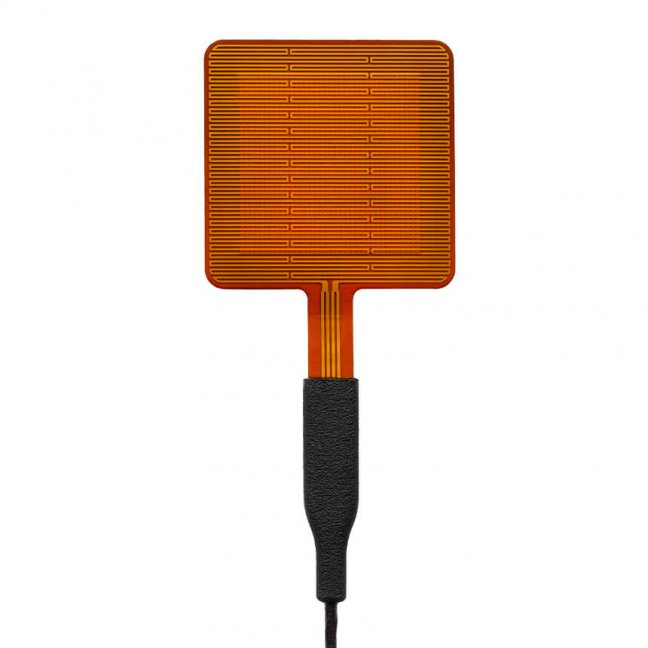

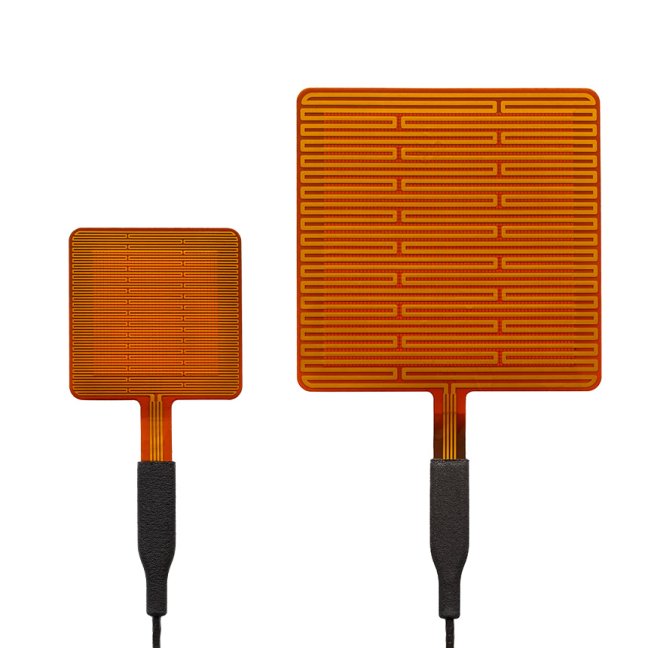

제품사진
| FHF05SC | |
|---|---|
 |
|
 |
|
 |
|
