일사량/열유속/열전도도계

Heat Flux SensorHTR02 series heater

제품이미지

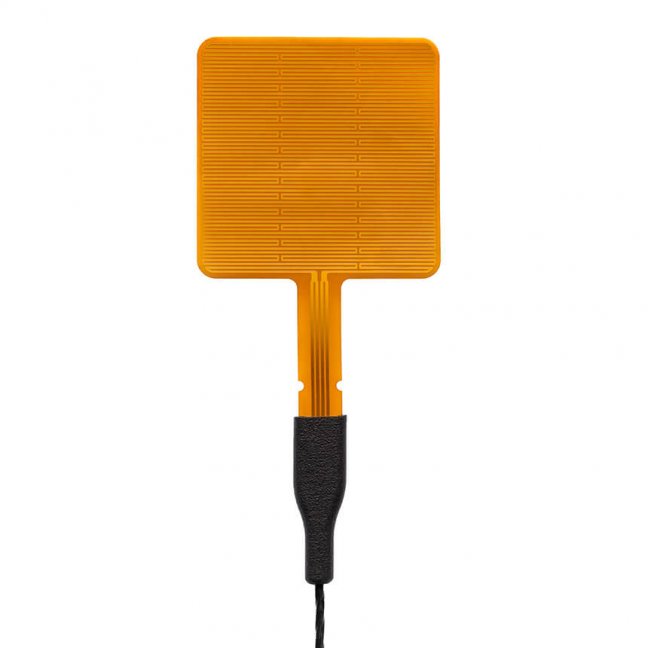

Heater for verification of performance of FHF-type heat flux sensors

HTR02 series heater

  • 열유속 센서 교정용 히터
  • FHF05와 같은 호일열유속 센서와 사용
  • 빠르고 간단하게 테스트
  • 센서 안정성 보장
  • 저렴한 가격대
  • 케이블길이 기본 2미터, 연장가능(선택)
BEST Good
제품사양
제품사양
HTR02 series heater
Power supply voltage 12 VDCx
Effective heater area per model
50x50 2381 x 10-6 m2
85x85 7022 x 10-6 m2
Heater electrical resistance per model
50x50 120Ω(nominal)
85x85 40Ω(nominal)
Heater thickness 0.1 x 10-3 m
Outer dimensions foil per model
50x50 (50x50) x 10-3 m
85x85 (85x85) x 10-3 m
Rated operating temperature range-continulus use -40 to 150C
Heater rated power supply 9 to 15VDC
Standard cable length 2m (2x2 wires)
Certificate supplied with a certificate stating surface area in [m2]and heater resistance in [Ω]

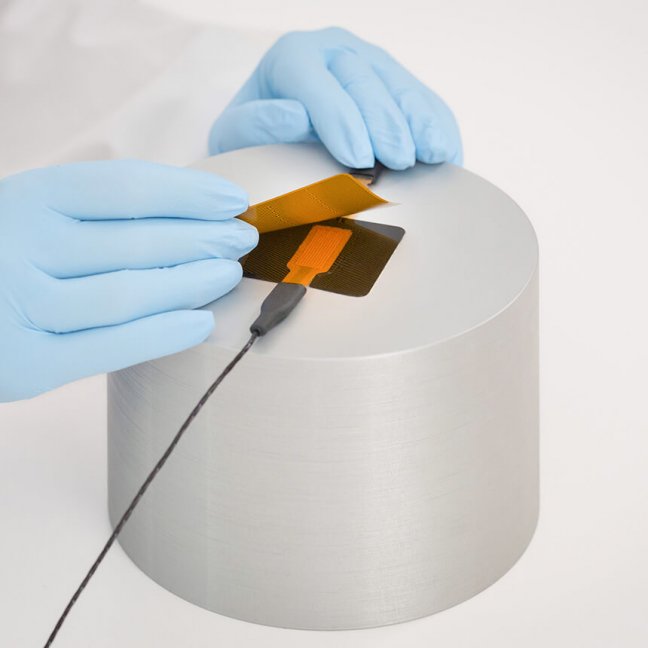

Reauirements for testing metal heat sink > 1kg; power supply 12 VDC; 0.2A; insulation material; voltage measurement; contact material such as glycerol or toothpaste
Options with 5 or 10m cable length
