유·무선가속도기울기센서

무선기울기센서SmartSensor Hi-INC

제품이미지

Wireless Sensor

SmartSensor Hi-INC

  • 측정 범위 : 모노 축 또는 이중 축 ± 15˚ 또는 ± 30˚
  • 우수한 해상도
  • 각 채널당 60 SPS 의 스트리밍 모드
  • 최대 무선 범위 650m (L.O.S)
  • 방수 IP67 알루미늄
BEST Good
제품사양
  • 측정범위 : 모노 축 또는 이중 축 ±15 °, 모노 축 또는 이중 축 ±30 °
  • 우수한 해상도
  • 650m (L.O.S) 의 최대 무선 범위
  • 울트라 파워 무선 기술 IEEE 802.15.4
  • 슬립 모드에서 소비 전류 < 30 μA
  • Embedded Data를 1백만개까지 데이터 수집 기록
  • 리튬 이온 배터리 충전기와 자동 충전시스템
  • 방수 알루미늄 케이스 IP67 (크기 LxWxH : 80x55x21 mm - 무게 145g 충전지 포함) - 거친 산업 환경에 적합
제품사양
제품사양
Sensor specifications
Inclinometer Technology Inclinometer based on MEMS Technology

Measurement resolution

(Bandwidth 10 Hz)

0.001°
Noise density 0.0004 °/√Hz
Accuracy (Full scale) ± 0.05°

Offset temperature dependency

(temperature range ?25°C to +85°C)

± 0.002 °/°C

Sensitivity temperature dependency

(temperature range ?25°C to +85°C)

± 0.005 %/°C with temperature compensation

± 0.013 %/°C without temperature compensation

Long term stability (@23°C) < 0.004 °
Analog to Digital converter

16-bits, SAR architecture (Successive Approximation Register)

with temperature compensation

Noise spectral density
DC to 100 Hz
0.0004 °/ √Hz


제품사양
RF Specifications
Wireless Protocol Stack IEEE 802.15.4 (2006 version)

WSN Topology

Point-to-Point / Star
Data rate 250 Kbits/s
RF Characteristics ISM 2.4GHz - 16 Channels. Antenna diversity architecture designed by Beanair®
TX Power +0 dBm to +18 dBm

Receiver Sensitivity

-95.5 dBm to -104 dBm

Maximum Radio Range 650 m (L.O.S)
Antenna Antenna diversity : 2 omni-directional antenna with a gain of 3dBi


제품사양
Over-the-air configuration (OTAC) parameters
Data Acquisition mode

Low Duty Cycle Data Acquisition (LDCDA) Mode : 1s to 24 hour
Alarm & Survey mode : 1s to 24 hour
Streaming Packet Mode

Streaming Mode

Sampling Rate

(SPS = sample per second,

in streaming packet mode)

Minimum : 1 SPS
Maximum : 60 SPS on each axis
Alarm Threshold 2 high levels alarms & 2 low levels alarms

Programmable Cut-off frequency

(Anti-aliasing filter)

1-100 Hz
Power Mode Sleeping, Sleeping with Network Listening & Active
TX Power +5 dBm / +11 dBm / +15 dBm / +18 dBm


제품사양
Environmental and Mechanical
Enclosure

Aluminum & Watertight (IP67 | Nema 6) enclosure
Enclosure Dimensions (w/o antenna) L×W×H: 80×55×21mm,

Weight (battery included: 145g)

Shock resistance

100g during 50 ms

Operating Temperature

-20 °C to +65 °C

Norms CE Labelling Directive R&TTE (Radio) ETSI EN 300 328
ROHS - Directive 2002/95/EC
적용분야
적용분야
안테나 위치 측정
자동차 안정성 성능평가
항공기 테스트
구조물 안정성 모니터링

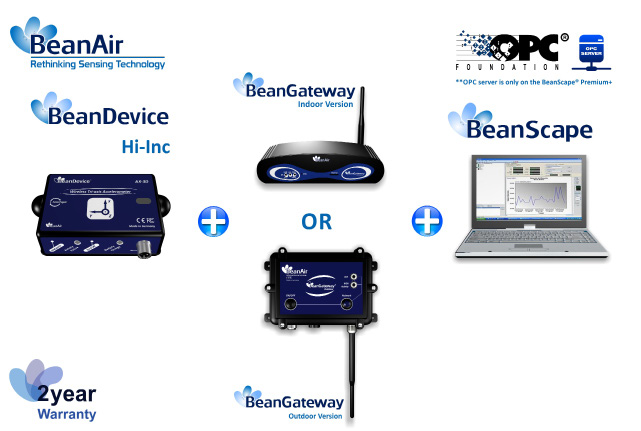

제품구성
제품구성
