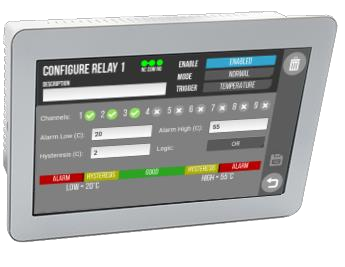

Model Name | HMI-001-RELAY |
---|---|
Touch Screen | 7-inch full color, 800x480 pixels |
Operating System | Linux |
Boot Device | 16 GB Removable micro SD card |
Internal RAM | 1 GB |
Power | 18~24 VDC, 10W max |
Ethernet | RJ45 10/100 Mbps |
USB | 3x USB 2.0 |
Wi-Fi | Supported with dongle |
RS-232 | 3 wire |
RS-485 | 3 wire Modbus RTU Master |
Relays | 1 system and 8 programmable, form C |
Contact Current Rating | 10A |
Switching Voltage | 250VAC |
Analog Outputs | 12 isolated 4-20mA outputs |
Networking | Modbus Slave (over TCP/IP, RS485 or USB) Available with license purchase: DNP3 and IEC 61850 over TCP/IP |
Real Time Clock | Yes, with internal battery |
Operating Environment | -20°C to +70°C, 0 to 90% RH |
Housing | Flame-retardant ABS, IP65 water resistant front panel |
Dimensions | 187mm Wide x 124mm High x 51mm Deep |
Weight | 0.7 kg |
