자동기상관측시스템
MeteodataMeteodata-3000C
제품사양
| Inputs/Outtputs | Mod.. 3008 | Mod.. 3016 |
|---|---|---|
| Analog input channels (totally differential) | 8 | 16 |
| Digital Inputs 4000V galvanic insulation | 2 Micro-relay Digital Inputs | |
| Digital Outputs 4000V galvanic insulation | 2 Micro-relay Digital Outputs | |
| Digital counters of 16 bits | 4 Digital counters, for pluviometers, anemometers and other similar sensors with impulse/frequency output. |
|
| Communication ports
RS232/422/485; Ethernet, etc. |
programmable Serial ports RS232/422/485 (upto 6 ports optional) |
|
| Input-Connecttiiviitty Siignalls | 1. Voltage signals from ± 2.5 uV up to ± 2,500 mV, extendable up to ± 5,000 mV and other higher ranges 2. Current Signals in 0-20 / 4-20 mA, etc… 3. PTC, NTC and Pt-100 type resistors for temperature 4. Frequency, Periodic signals |
|
| Avaiillablle Communiicattiion Prrottocolls | TCP/IP (Telnet, SMPT, FTP, etc.), Short SMS messages to mobile telephones for notices or alerts, GEONICAprotocol (TELETRANS-W4K Software), DI-12, Modbus, GPS( NMEA, GLL, CGA, etc.), in case a GPS receiver isintegrated in the station. Specific protocol for Smart Sensors, etc. |
|

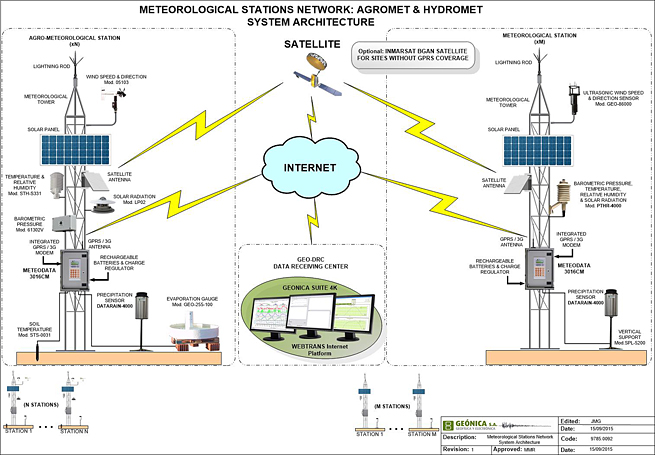

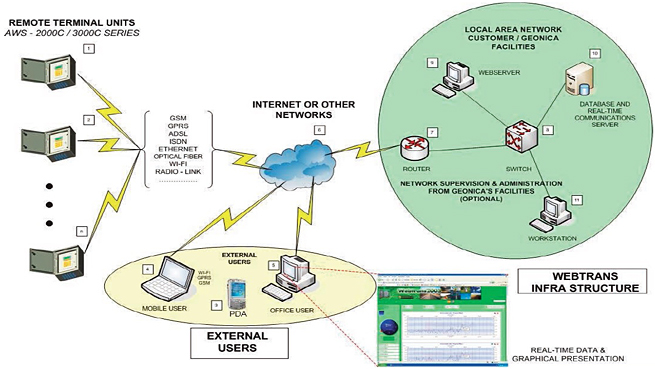

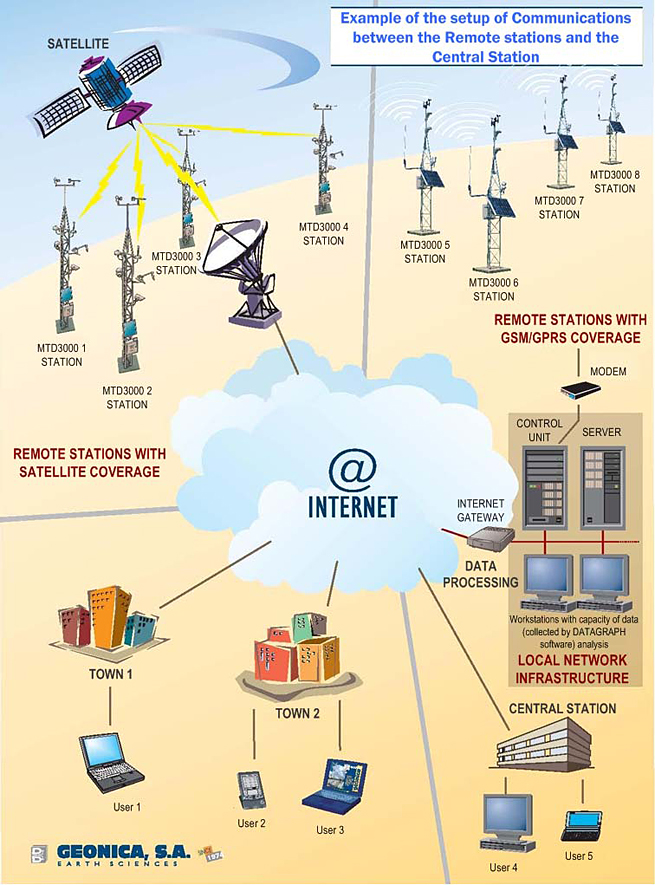

구성도
| Meteodata-3000C | |
|---|---|
 |
|
 |
|
 |
|

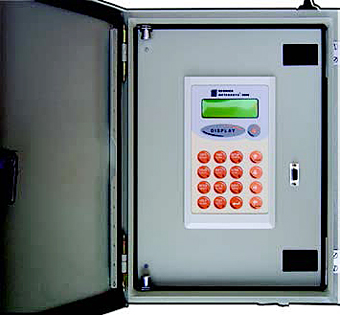

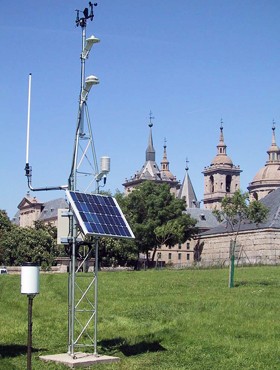

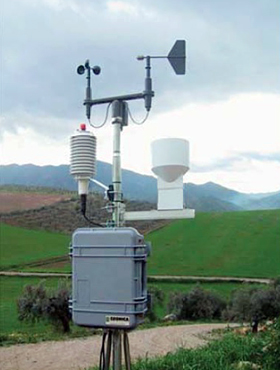

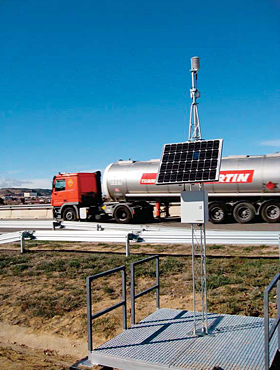

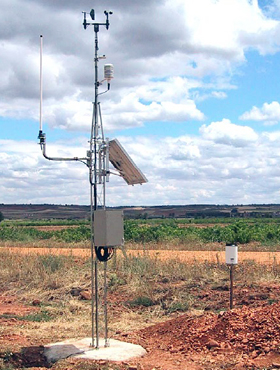

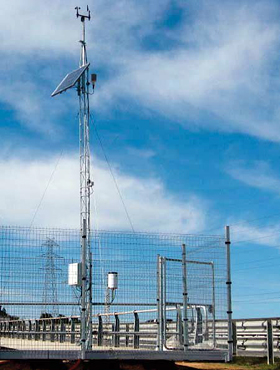

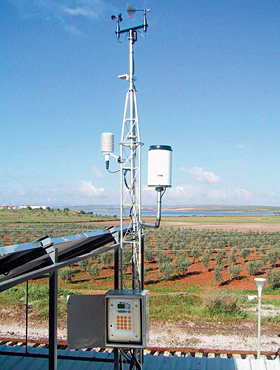

제품사진
 |
 |
 |
 |
 |
 |
