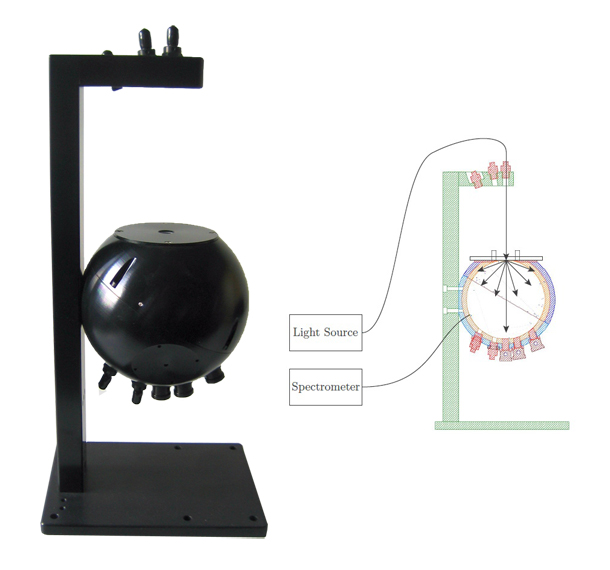

적분구
HAZE
BEST Good
제품특징
-
- Wavelength range
- 350~2500nm
-
- PTFE
- PTFE의 내부재질
-
- Diameter
- 100mm 직경의 적분구
-
- 100,150,200 적분구
- 10W Halogen light source 사용
-
- Application
- HAZE 측정 외 투과율, 반사율 측정
-
- Best
- 가격 대비
우수한 성능
제품사양
| Specifications | |
|---|---|
| Internal diameter | 100 mm |
| Wavelength range | 250-2000 nm |
Reflective material |
PTFE |
| Transmission |
|---|
| Measurement of total transmission (directional and diffuser) |
| Measurement of diffuse transmission only |
| Derived from this calculation of the directional transmission |
| Angle of incidence (AOI) Transmission : 0°, 8° or 20° |
| Reflction |
|---|
| Measurement of total reflection (directional and diffuser) |
| Measurement of diffuse reflection only |
| Derived from this calculation of the directional transmission |
| Angle of incidence (AOI) Reflection : 8° or 20° |
| Size parameters of the sample |
|---|
| Sample area (measuring spot) approx. 4 mm, variable via the fiber core diameter |
| Sample size up to 25 mm, limited only by the input port of the sphere |
