일사량/열유속/열전도도계

Heat Flux SensorHFS01

제품이미지

Water Cooled High HeatFlux Sensor

HFS01

  • 수냉식 열유속센서
  • 극한 상황에서도 견딜 수 있는 고온 케이블 사용

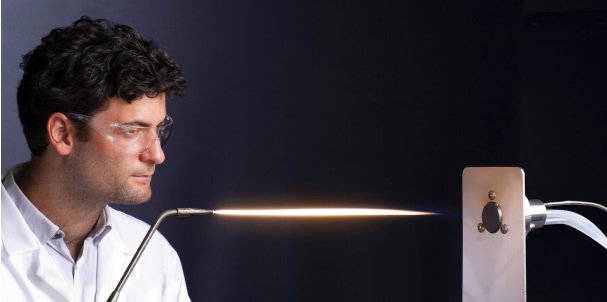

  • 집중태양복사, 고강도 화염 연구에 최적화
  • 저렴한 가격대
  • 0 - 800 kW W/m2 측정
BEST Good
제품사양
제품사양
HFS01 열유속센서
Measurand in SI units heat flux density /irradiance in W/m2
Heat flux sensor thermopile
Temperature sensor thermocouple type K
Sensitivity (nominal) 9 x 10-9 V/(W/m2)
Calibration traceability to SI units
Measurement range (0 to 800) x 103 W/m2
Rated operating temperature ranges

sensor and black coating : -30 to +650 °C

high-temperature cable : -30 to +900 °C

low-temperature extension cable : -30 to +240 °C

IP protection class IP67
Standard cable lengths

high-temperature cable : 1 m (see options)

low-temperature extension cable : 3 m (see options)

Rated cooling water 10 to 30 °C
Rated cooling water flow > 30 l/h (0.01 l/s), preferably 100 l/h (0.03 l/s)
Output signal DC voltage
Output signal range

10 x 10 -3 V at rated measurement range

Spectral range 0 to 50 x 10-6 m
Full field of view angle

180 °

Black coating emissivity 0.92 (estimate)

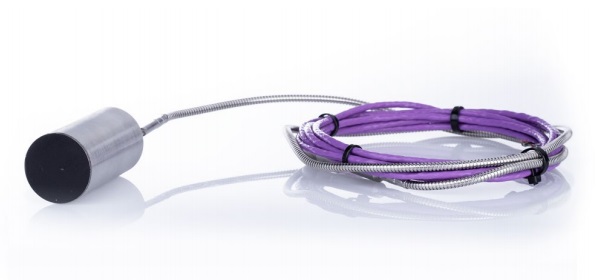

제품사진
