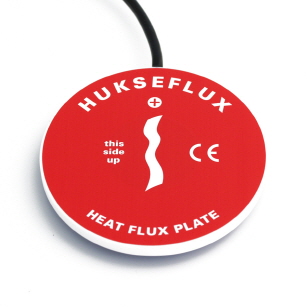

| HFP01 열유속센서 | |
|---|---|
| Sensing area | 8 x 10-4 m2 |
| Guard width to thickness ratio | 5 m/m (as required by ISO 9869 D.3.1) |
| Sensor thickness | 5.4 x 10-3 m |
| Uncertainty of calibration | ± 3 % (k = 2) |
| Sensitivity (nominal) | 60 μV/Wm2 |
| Temperature range | -30 to +70 °C |
| Sensor thermal resistance | < 71 x 10 -4 K/(W/m2) |
| Measurement range | -2000 to +2000 Wm2 |
| IP protection class | IP67 |
| Standard cable length | 5 m |
