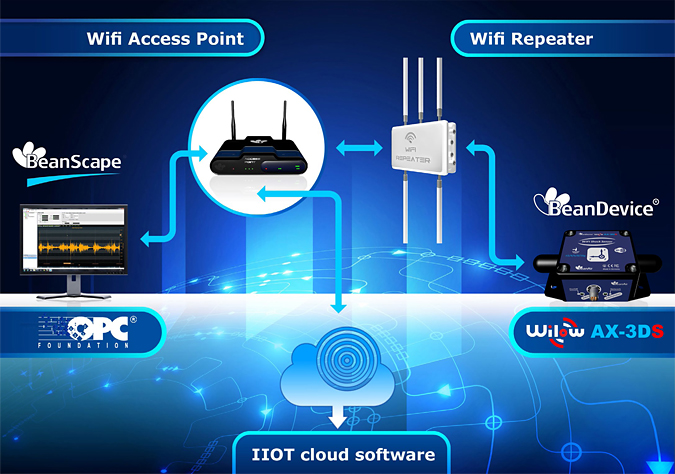

제품사양
- 저전력 Wi-fi 통신을 이용한 충격감지 전용 3축 가속도센서( ±2 / ±4 / ±6 / ±8 / ±16g)
- 최대 5백만개 데이터 저장 가능
- 산업용에 적합한 작동 온도 (-40 °C ~ +60 °C)
- USB 2.0을 통한 장치구성 및 충전 (다양해진 충전방식)
- 최대 전파 범위 200m (L.O.S)
- IOT Ready : MQTT, 오픈소스 IOT 프로토콜 적용
- Store and Forward+ 전송방식으로 데이터 손실 최소화
- 기존 Wi-fi 인프라에 적용 가능
제품사양
| Shock sensor specifications | |
|---|---|
Shock Sensor echnology |
MEMS technology |
| Shock sensor range | ±2g / ±4g / ±6g / ±8g / ±16g dynamically selectable from the BeanScape software |
| Sensitivity | ±2g range: 0.06 mg/digit |
| Typical non-linearity | ±0.15% on the FS |
Analog to Digital converter |
12-bits with temperature compensation |
| Sensor frequency response (-3 dB) | DC to 800 Hz |
| Maximum sampling rate | 1.6 kSPS per axis |
| Noise spectral density | 150 μg/√Hz |
| Sensitivity change Vs temperature | ±0.01 %/°C |
| Zero-g level change vs temperature (max delta from 25°C) | ±0.5 mg/°C |
| Typical zero-g level offset accuracy | ±40 mg |
| Anti-aliasing filter | Butterworth 2th order filter |
| Remote configuration parameters | |
|---|---|
| Data Acquisition mode (SPS = sample per second) | Low Duty Cycle Data Acquisition (LDCDA) Mode:
1s to 24 hour
Alarm & Survey mode: 1s to 24 hour Streaming mode : 100 SPS by default Alarm Streaming Mode : 100 SPS by default |
| Sampling Rate (in streaming packet mode) | Minimum: 1 SPS
Maximum: 3 kSPS per axis |
| Alarm Threshold | 2 high levels alarms & 2 low levels alarms |
| Power Mode | Sleeping with Network Listening & Active |
| RF Specifications | |
|---|---|
| Wireless Protocol Stack | IEEE 802.11 b/g/n |
WSN Topology |
Point-to-Point / Star / Cluster-Tree |
| Crypto Engine | WPA2, WPS2, EAP-TTLS |
| Data rate | 16 Mbps |
| RF Characteristics | ISM 2.4GHz - 16 Channels. Antenna diversity architecture designed by Beanair® |
| TX Power | 18 dBm @ 1 DSSS / 14.5 dBm @ 54 OFDM |
| Rx Sensitivity | -95.7 dBm @1 DSSS / -74.0 dBm @ 54 OFDM |
| Maximum Radio Range | 200m (L.O.S), Radio range be extended by adding Wifi Repeater |
| Antenna | Antenna diversity : 2 omnidirectional antenna with a gain of 2,8 dBi |
| USB specifications | |
|---|---|
| USB standard | USB 2.0 |
| Data Rate | Full speed operation (12 MB/s) |
| Related functions | Firmware update Measurement logs download Wifi & Data Acquisition mode configuration |
| Embedded Data logger | |
|---|---|
| Storage Capacity | Up to 5 million data points |
Wireless data downloading |
3 minutes to download the full memory (average time) |
| Environmental and Mechanical | |
|---|---|
| Casing | Aluminum casing
Dimensions in mm (L x W x H): 65 x 59 x 35 mm without antenna & eyelet, Weight (with internal battery, w/o mounting option) : 220g |
Shocks resistance |
100g during 50 ms |
| Operating Temperature | -40 °C to +65 °C |
Norms & Radio Certifications |
CE Labelling Directive R&TTE (Radio) ETSI EN 300 328 (Europe)
FCC (North America) ARIB STD-T66 Ver. 3.6 (Japan) ROHS - Directive 2002/95/EC |
| IP|NEMA Rating | IP67 | Nema 6 |
| Power supply | |
|---|---|
| Rechargeable battery | High density Lithium-Ion rechargeable battery with a capacity
of 780 mAh |
Integrated battery charger |
Integrated Lithium-ion battery charger with high precision battery monitoring |
| Current consumption @ 3.3V | During data acquisition : 20 to 30 mA
During Radio transmission : 1 DSSS - 278 mA / 54 OFDM - 229 mA During sleep power mode : < 100 μA |
External power supply |
Two power supplies available:
- USB Power supply 5V - 5 VDC to 17 VDC compatible with solar energy harvesting |
| Included accessories | |
|---|---|
| M8 plastic cap | 1pcs, Ref: WL-PC |
M8 to USB cable |
1pcs M8-5pins to USB Cable, 2 meters length. Ref: WL-CBL M8-USB-2M |
| Magnet for power on/power off | 1pcs Magnet. Ref: WL-MGN |
Wall mounting kit |
4 pcs M5 screws + Locknut. Ref: WL-SCMKIT |
| Option(s) | |
|---|---|
| Power Supply | Wall plug-in, Switch mode power Supply 12V @ 1,25A with USB plug |
M8 cable |
M8-5Pins Cable , cable length :
- 2 meters. Ref: WL-CBL-M8-2M - 5 meters. Ref: WL-CBL-M8-5M |
| Calibration certificate | Calibration certificate linked to national and international standards (DRAKKS) (Ref: WL-CERT-CAL) |
적용분야

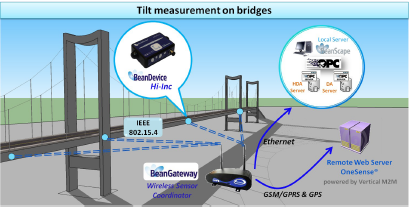

| 교량 기울기 측정 | |
|---|---|
| |

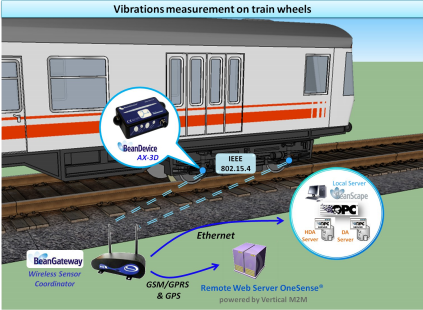

| 기차바퀴 진동 측정 | |
| |

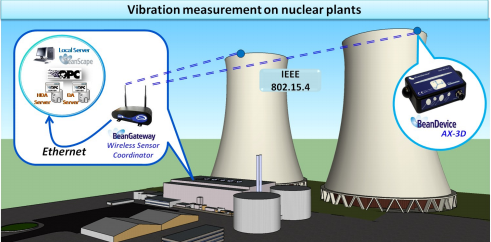

| 발전시설 진동 측정 | |
| |

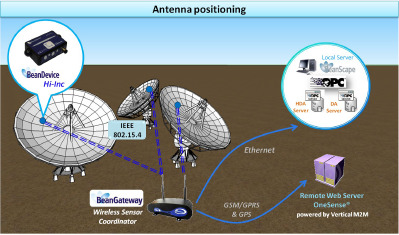

| 안테나 위치 측정 | |
| |

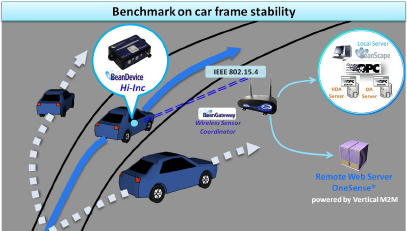

| 차량프레임 안정성 측정 | |
| |

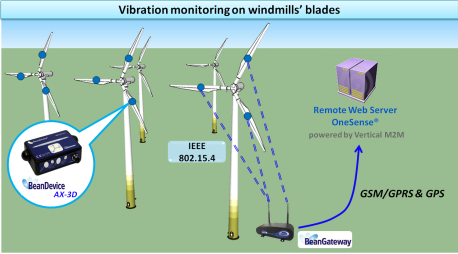

| 풍력발전기 진동 측정 | |
| |
